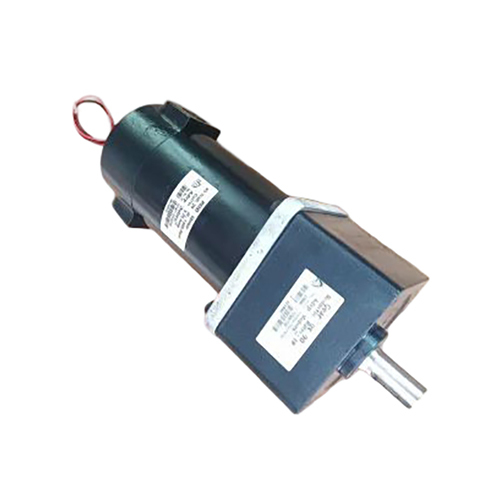

Single Phase Induction Motor
Single Phase Induction Motor

Single Phase Induction Motor

MOQ : 1 Piece

Single Phase Induction Motor Specification

  • Pressure
  • Standard Atmospheric
  • Rated Voltage
  • 220 V
  • Noise Level
  • < 50 dB
  • Poles Number
  • 4 Poles
  • Current Type
  • AC
  • Ambient Temperature
  • -10C to +50C
  • Voltage
  • 220 V
  • Torque
  • 1.5 Nm
  • Cooling Method
  • Air-cooled
  • Horse Power
  • 0.25 HP
  • Bearing Type
  • Ball Bearing
  • Motor Type
  • Induction Motor
  • Rated Frequency
  • 50 Hz
  • Efficacy
  • High
  • Features
  • Sturdy construction, High starting torque, Low maintenance
  • Starting Type
  • Capacitor Start
  • Sealed Type
  • Totally Enclosed
  • Standard
  • IS:996
  • Power Rating
  • 185 W
  • Product Type
  • Single Phase Induction Motor
  • Output Power
  • 0.25 HP
  • Frequency (MHz)
  • 50 Hz
  • Protect Feature
  • Thermal overload protection
  • Phase
  • Single Phase
  • Speed
  • 1440 RPM
  • Power
  • 185 W
  • Color
  • Blue
  • Dimension (L*W*H)
  • Approx. 250 x 80 x 90 mm
  • Weight
  • 5.5 kg
  • Shaft Diameter
  • 12 mm
  • Mounting Type
  • Foot Mount
  • IP Rating
  • ip44
  • Frame Material
  • Aluminium
  • Winding Material
  • Copper
  • Insulation Class
  • Class B
  • Service Factor
  • 1.15
  • Rotation Direction
  • Bi-directional
  • Rated Load
  • Continuous
  • Cooling Fan
  • Plastic
  • Maximum Ambient Humidity
  • 95%
  • Duty Cycle
  • S1 (Continuous)
  • Application
  • Industrial, Domestic, Agricultural
  • No Load Current
  • 0.5 A


Single Phase Induction Motor Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Supply Ability
  • 100 Pieces Per Week
  • Delivery Time
  • 7 Days

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Single Phase Induction Motors Category

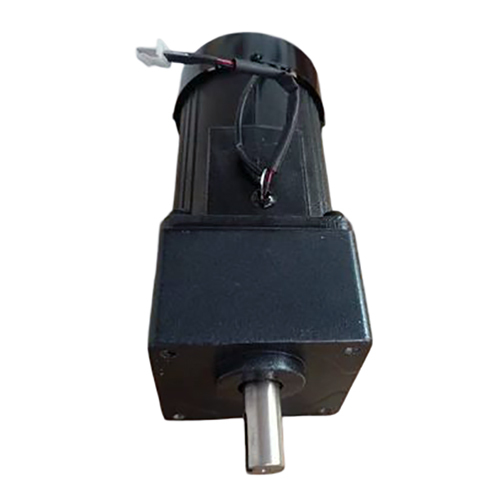

Single Phase Electric Motor

Single Phase Electric Motor

Minimum Order Quantity : 1 Piece

Product Type : Other, Single Phase Electric Motor

Phase : Single Phase

Motor Type : AC Induction Motor

Output Power : 0.5 HP

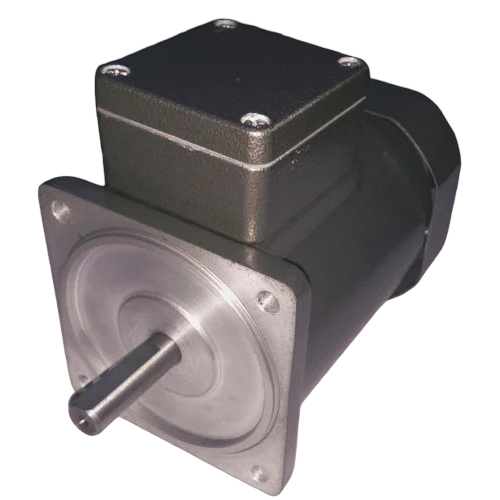

25 Watt Motor With Gear Box
