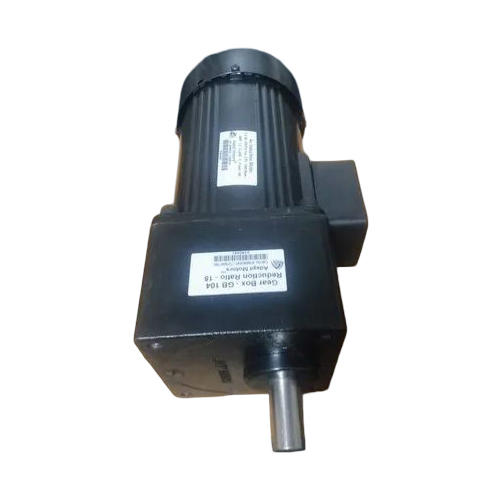

Inline Gear Helical Motor
Inline Gear Helical Motor

Inline Gear Helical Motor

Price 12000 INR/ Piece

MOQ : 1 Piece

Inline Gear Helical Motor Specification

  • Efficacy
  • IE2/IE3
  • Sealed Type
  • Totally Enclosed Fan Cooled (TEFC)
  • Rated Frequency
  • 50 Hz
  • Torque
  • Up to 600 Nm
  • Standard
  • IS/IEC 60034-1
  • Pressure
  • Standard atmospheric
  • Starting Type
  • Direct On Line (DOL)
  • Poles Number
  • 2/4/6 Poles
  • Cooling Method
  • Fan Cooled
  • Rated Voltage
  • 400 V
  • Horse Power
  • 0.5 HP - 75 HP
  • Power Rating
  • As per model
  • Bearing Type
  • Deep Groove Ball Bearing
  • Features
  • High efficiency, robust design, easy integration, low noise
  • Current Type
  • AC
  • Ambient Temperature
  • -15C to +40C
  • Motor Type
  • Inline Gear Helical Motor
  • Noise Level
  • Less than 75 dB (A)
  • Voltage
  • 230/400 V
  • Product Type
  • Industrial Gear Motor
  • Output Power
  • 0.37 kW - 55 kW
  • Frequency (MHz)
  • 50/60 Hz
  • Protect Feature
  • IP55
  • Phase
  • Three Phase
  • Speed
  • Up to 1600 RPM
  • Power
  • Electric
  • Color
  • Black/Grey
  • Dimension (L*W*H)
  • Varies by model (approx. 320x180x180 mm for mid-range)
  • Weight
  • 15-65 kg (model dependent)
  • Shaft Diameter
  • 25-70 mm (model dependent)
  • Mounting Type
  • Foot/Flange Mounted
  • IP Rating
  • IP55
  • Lubrication Type
  • Synthetic Oil Filled
  • Efficiency Class
  • IE2/IE3 (as per model)
  • Operation Temperature
  • -10C to +50C
  • Enclosure
  • Totally Enclosed
  • Reducer Type
  • Inline Helical
  • Shock Load Capacity
  • High
  • Mounting Position
  • Horizontal/Vertical
  • Application
  • Conveyor, Industrial Automation, Packaging, Material Handling
  • Service Factor
  • 1.5
  • Gear Material
  • Hardened Alloy Steel
  • Duty Type
  • S1 (Continuous)
  • Direction of Rotation
  • Reversible
  • Gear Ratio
  • Up to 200:1


Inline Gear Helical Motor Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Supply Ability
  • 100 Pieces Per Week
  • Delivery Time
  • 7 Days
